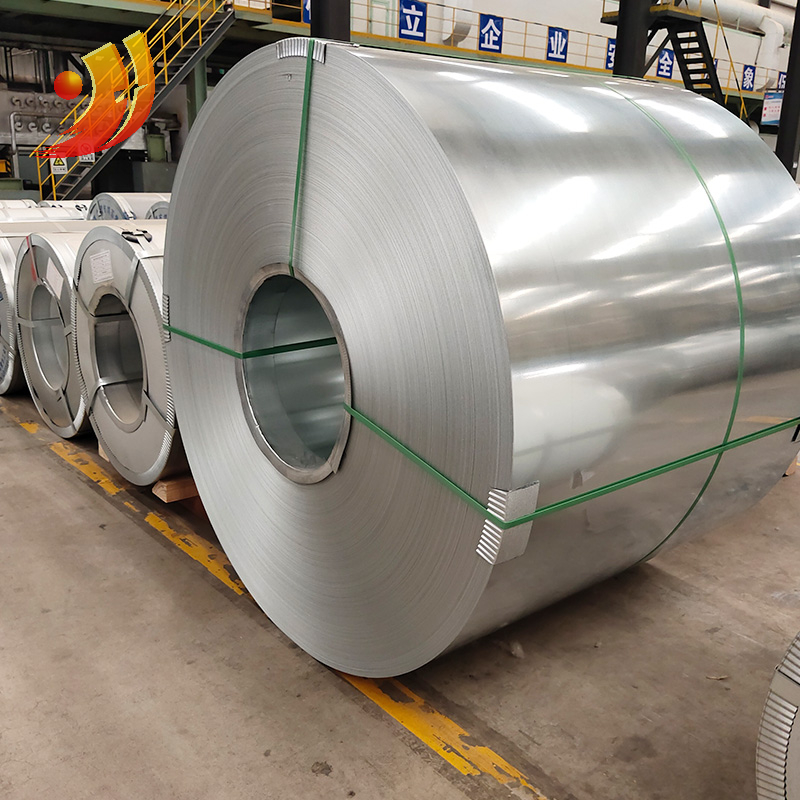

Galvanized coiled sheet is a thin steel sheet that is immersed in a molten zinc bath so that a layer of zinc adheres to the surface. At present, the continuous galvanizing process is mainly used for production, that is, the rolled steel plate is continuously immersed in a plating bath containing molten zinc to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot dip method, but it is heated to about 500 degrees Celsius immediately after coming out of the tank, so that it forms an alloy film of zinc and iron. This kind of galvanized coil has good paint adhesion and weldability.

Parameters of galvanized coils

Product Name：Galvanized Steel coil

Width：600-1500mm or as customer's requirements

Thickness：0.12-3mm, or as customer's requirements

Length：As requirements

Zinc coating：20-275g/m2

Surface：Light Oil, Unoil,dry, chromate passivated, non-chromate passivated

Material:DX51DSGCCDX52DASTMA653JISG33020235B-0355B

Spangle:Regular spangle, minimal spangle, zero spangle, big spangle

Coil Weight:3-5 Tons or as customer requirements

Certifications:ISO 9001 and SGS

Packing:Industry-standard packaging or according to client's requirement

Payment:TT Irrevocable LC at sight, Western union, Ali trade assurance

Delivery time：Up to order quantity, contact us to know

Zinc Coating

(1) Spangle coating:

During the normal solidification process of the zinc layer, the zinc grains grow freely and form a coating with obvious spangle morphology.

(2) Minimized spangle coating:

During the solidification process of the zinc layer, the zinc grains are artificially restricted to form a spangle coating as small as possible.

(3) spangle-free:

By adjusting the chemical composition of the plating solution, there is no visible spangle morphology and a uniform coating on the surface.

(4) zinc-iron alloy coating:

Heat treatment is carried out on the steel strip after passing through the galvanizing bath, so that the entire coating forms an alloy layer of zinc and iron. The appearance of this coating is dark gray, without metallic luster, and it is easy to pulverize during the violent forming process. Except for cleaning, coatings that can be painted directly without further treatment.

(5) differential coating:

For both sides of the galvanized steel sheet, coatings with different zinc layer weights are required.

(6) skin pass:

Skin pass is a cold rolling process with a small amount of deformation on galvanized steel sheets for one or more of the following purposes.

Advantages

The main advantage of galvanized coil is that the surface oxidation resistance is strong, which can strengthen the corrosion resistance of parts. In addition, the surface of galvanized roll is clean and beautiful, which enhances the decorative material. Therefore, galvanized products are becoming more and more indispensable materials in manufacturing industry.

How to choose galvanized coilshoos

1. Cost-effective solution

Compared to GL or color coated steel coils, galvanized steel coils are the most cost-effective solution, but with similar features such as great corrosion resistance, good appearance, etc.

2. Wide range of applications

Galvanized steel coil can be easily processed into different applications. It is widely used in construction, home appliances, automotive containers, transportation, and other fields.

3. Easy to transport

Compared with GI steel sheets, the coil is easier to transport. In this way, it will save your transportation cost.

Application

Because galvanized coil has the characteristics of strong corrosion resistance, good surface quality, good for deep processing, economical and practical, it is widely used in construction, home appliances, automobiles, containers, transportation and household business. Especially steel structure construction, automobile manufacturing, steel silo manufacturing and other industries.
